Advanced Intumescent Firestopping Solutions and Materials Applied in Various Applications
Defining “Intumescent”
An intumescent is a material which reacts and expands aggressively when exposed to heat or fire. Depending on the requirements of the application, the expansion rate can be up to 30 times the original size of the product. The pressure generated by the intumescent when expanding can be tailored for each application, the expansion rate can be up to 30 times the original size of the product. Once expanded, the intumescent product creates a tough and solid char, which can prevent the spread of flames, heat, and smoke for many hours.
For several decades, Tenmat has been a leader in the development, engineering, and manufacturing of innovative intumescent technology, designed to protect the lives and property of our current and future communities. Each solution is crafted specifically to meet the various demands of construction practices, ranging from multi-family to mass timber to modular construction and so much more. Discover which intumescent is right for you and your next construction project.

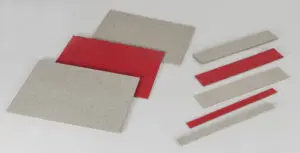

FF102 – Rigid Passive Fire Protection
For applications, such as façade systems and fire-rated doors, which require a rigid material with a high level of pressure generation and expansion performance, Tenmat developed FF102. Tenmat’s FIREFLY 102 is a rigid intumescent material that possesses excellent pressure generation and expansion performance. It is a halogen free graphite-based material which produces a particularly stable and resilient insulating char structure during and after expansion. This material is applicable to but not limited to open state cavity barriers, door and glazing applications, firestop systems for ventilated rainscreen systems, and general gap sealing.
Some key benefits include:
- Uni-directional expansion
- Stable and resilient insulating char
- Halogen Free
- Rigid Material
FF104E – Flexible Fire Defense
Looking for a solution that can be industrially produced into rolls and offer a high level of flexibility for complex, modern applications? Tenmat FIREFLY 104E is a dark grey intumescent paper, which generates high expansion and expansion pressure when exposed to flames or high temperature levels. Its high flexibility allows it to be wrapped or folded to suit various applications but produces an excellent char structure helping to maintain integrity throughout the fire. Common construction practices FF104E is applicable to joint sealing within offsite-construction, battery protection in electrical vehicles, linear gap seals associated with concrete construction methods, and gasket applications. Just like the flexibility of FF104E’s components in application, it aligns its capabilities with diverse application needs.
Key Benefits include:
- High expansion and pressure generation
- Highly Flexible
- Excellent char structure
- 20:1 expansion ratio

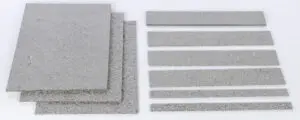

FF107 – Powerful Fireblocking
Seeking a fireblocking solution which provides a high reaction rate, high levels of expansion and pressure generation? Tenmat FF107 is an exceptionally powerful intumescent which combines fast reaction with high expansion and pressure generation. This material has the capability to produce a solid char, allowing for good integrity within the application after a fire outbreak. Due to its strong composition and firestopping capabilities, FF107 has been a popular solution for firestopping in mass timber construction practices. However, the FF107 can also be applied to open state cavity fire barriers, penetration seals, pipe wraps, duct fire wraps, fire collars, electrical socket protection, and gap sealing in various applications, from modern construction practices to high acoustical protection practices.
Key Product Features include:
- High expansion and pressure generation
- Fast Reaction
- 30:1 expansion rate

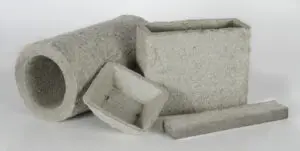

FF109 – Universally Versatile
With the demands for passive fire protection consistently shifting, Tenmat has crafted a universal material, who can meet a variety of applications, no matter how simple or complex. Tenmat FIREFLY 109 is a compressible intumescent material which expands to form a resilient and stable char. It’s a lower density material with lower expansion characteristics; allowing the material to function in a controlled manner without the need for additional restraints. The materials are available in various thicknesses, starting at 10mm, and have the capability to be designed into either 2D or 3D shapes. In correlation, Tenmat has pre-designed an entire line of dome-shaped fire-rated covers, designed for various lighting fixtures and in-ceiling loudspeakers. On top of this line of fire-rated covers, Tenmat has the manufacturing measures to design an ideal solution, whether it’s a controlled intumescent sheet, pipe fire sleeve, vent duct fire sleeve, or a new industry application.
Key Product Details:
- Vacuum Formed
- Available in Sheets, 2D or 3D Shapes
- Resilient char formation
- 5:1 expansion ratio
Conclusion – A Diverse Portfolio of Innovative Intumescent Technology
Tenmat’s diverse range of intumescent materials presents various characteristics ideal for a multitude of applications. With varying expansion rates, shapes, thicknesses, and premium benefits, these solutions cater to a broad spectrum of construction needs. For inquiries or guidance on selecting the ideal intumescent material, contact our sales team at +1 (800) 821-3436 or via email at info@tenmatusa.com.
