FF102
Rigid Intumescent Material
TENMAT FIREFLY 102 produces a very solid and durable char structure.
Key Benefits:
- 26:1 expansion ratio
- Stable and resilient insulating char
- Rigid material
- Halogen free
- Surface burning characteristics ASTM E84 (UL 723): Flame Spread: 0 Smoke Developed: 0
Product Details
Tenmat FF102 is a rigid intumescent material that possesses excellent pressure generation and expansion performance. Tenmat FFF102 produces a very solid and durable char structure.
Tenmat FF102 is suited to wide range of applications including as a fire seal for door and glazing applications, ironmongery protection, cladding & rainscreen cavity fire barriers, construction joints, gaskets and general gap sealing.
FF102 is a halogen free graphite based intumescent material which produces a particularly stable and resilient insulating char structure during and after expansion.
FF102 was tested according to ASTM E84 (UL 723) to measure its surface burning characteristics and achieved a flame spread index of 0 (zero) and a smoke developed value of 0 (zero).

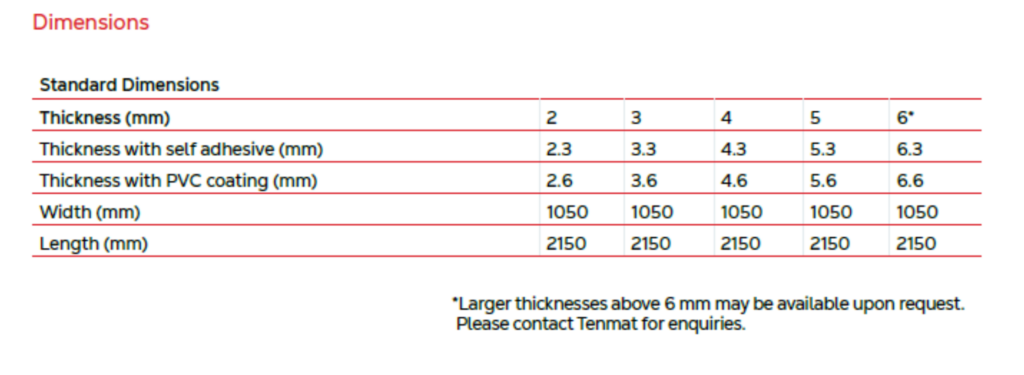

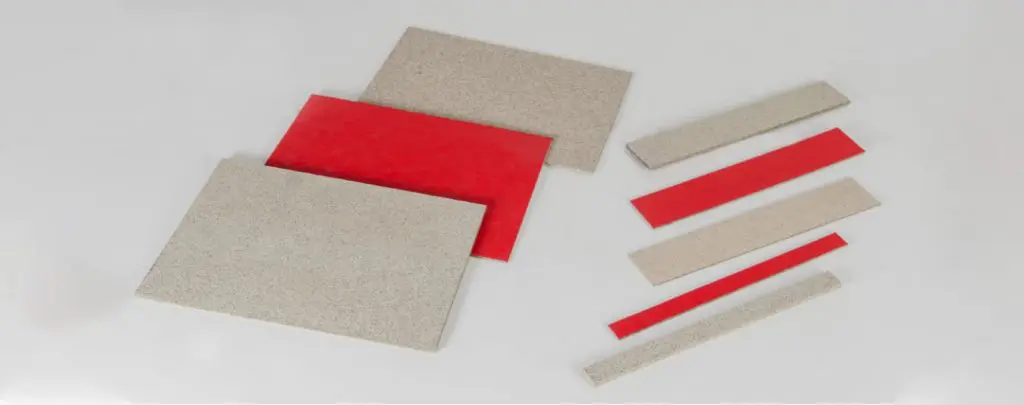

FF102 is available in a variety of thicknesses, from 2 mm up to 6 mm*, with or without self adhesive or PVC coatings. It can be supplied in sheets up to 2150 x 1050 mm, or alternatively it can be slit to a variety of widths and lengths within those dimensions.
